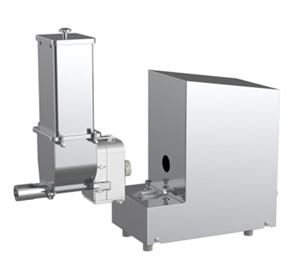

Highly Hygienic Machine Design
The entire product-contact assembly, including the hopper and screw, can be easily removed, allowing the unit to be disassembled for thorough cleaning.
Precision Equipment
Business Unit

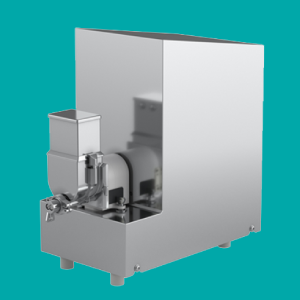

Twin Screw Gravimetric Feeder
MiniTwin (for Pharmaceutical Industry)
Innovative Design

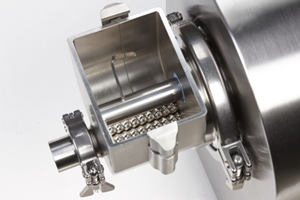

Hygienic Design for Pharmaceutical Manufacturing
The hygienic design takes GMP requirements into consideration. Resin components used in product-contact areas are made of FDA-compliant materials.

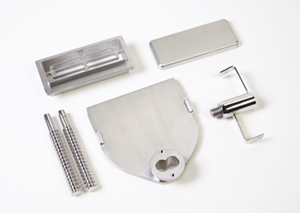

Downsizing Kit (Optional)
The downsizing kit reduces the hopper size to minimize the amount of material retained inside the feeder. This helps reduce material loss, particularly when handling expensive materials.
Main specifications
|
Product Name |
Micro Feeder MiniTwin |
||
|---|---|---|---|
| Model |
MT 2.0 HD EC |
||
| Flow rate range |
0.05 to 5 L/h |
||
| Weighing hopper |
Available in three sizes: 0.5 L, 1.0 L, and 1.5 L |
||
| Weighing capacity |
0.8 kg |
||
|
Screw type: TC 12/04 |
Max. feed rate: 1.26 L/h |
||
|
Screw type: TC 12/12 |
Max. feed rate: 5.60 L/h |
||
| Parts in contact with bulk materials |
SUS316 or SUS316L |
||
|
Seal material |
FDA-compliant* materials (PTFE, silicone, etc.) |
||
| Power supply |
AC 200 to 240 V ±10%, single-phase, 0.5 kVA |
||
|
Product weight: 0.5 L hopper |
Approx. 38 kg |
||
|
Product weight: 1.0 L hopper |
Approx. 38 kg |
||
|
Product weight: 1.5 L hopper |
Approx. 39 kg |
||
*FDA: U.S. Food and Drug Administration
Resin components used in areas in contact with bulk materials are made of FDA-compliant materials.
